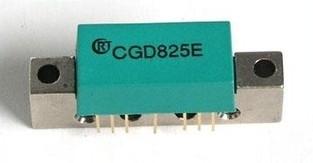

    870MHz 25dB Gain CATV GaAs Power Doubler Amplifier Module

    Ask Lasest Price
    Model Number : CGD825E
    Price : USD$2.74/pcs
    Payment Terms : Western Union, T/T
    Delivery Time : 3-5work days
    • Product Details
    • Company Profile

    870MHz 25dB Gain CATV GaAs Power Doubler Amplifier Module

    Product Features

    GaAs Active Devices
    Power Gain 25dB
    Low Distortion
    Excellent Linear Gain
    Low Noise Figure
    High Reliability
    Industry Compatible Package

    Product Description

    CGD825E is a power double amplifier module combined by Si RF and GaAs active devices; It is suitable to use in power amplifier of CATV transferring system; Operating frequency range is 40-870 MHz; Supplying voltage is 24V; Outside package uses industry compatible SOT115J.

    Technology Specifications
    (Bandwidth 40 to 870 MHz; TCASE 25,VDD 24V,ZSZL75Ω)

    Item No.: CGD825E
    SymbolParametersUnitMin.Typ.Max.Condition
    BWFrequency RangeMHz40-870
    GAGaindB24.52526.5f = 870MHz
    SGain SlopedB0.5-2.0f = 40 to 870 MHz
    GFGain FlatnessdB-±0.6-f = 40 to 870 MHz
    S11Input Return LossdB
    dB
    dB
    18-
    -
    -
    f = 40 to 160MHz
    f = 160 to 320 MHz
    f = 320 to 870 MHz
    S22Output Return LossdB18-
    -
    -
    f = 40 to 160MHz
    f = 160 to 320 MHz
    f = 320 to 870 MHz
    CTBComposite Triple BeatdB--70 -65-77 Channels,Vout=56dBmV/ch
    110 Channels, Vout=52dBmV/ch
    CSOComposite Second OrderdB-
    -
    -70 -60-77 Channels,Vout=56dBmV/ch
    110 Channels, Vout=52dBmV/ch
    XmodCross ModulationdB--60-77 Channels,Vout=56dBmV/ch
    110 Channels, Vout=52dBmV/ch
    ItotTotal Current ConsumptionmA485DC value;V B= + 24V
    NFNoise FiguredB-6.5f = 870 MHz
    V 0Output VoltagedBµV-126-
    T OPOperating Temperature-20-110
    T STGStorage Temperature-30-110
